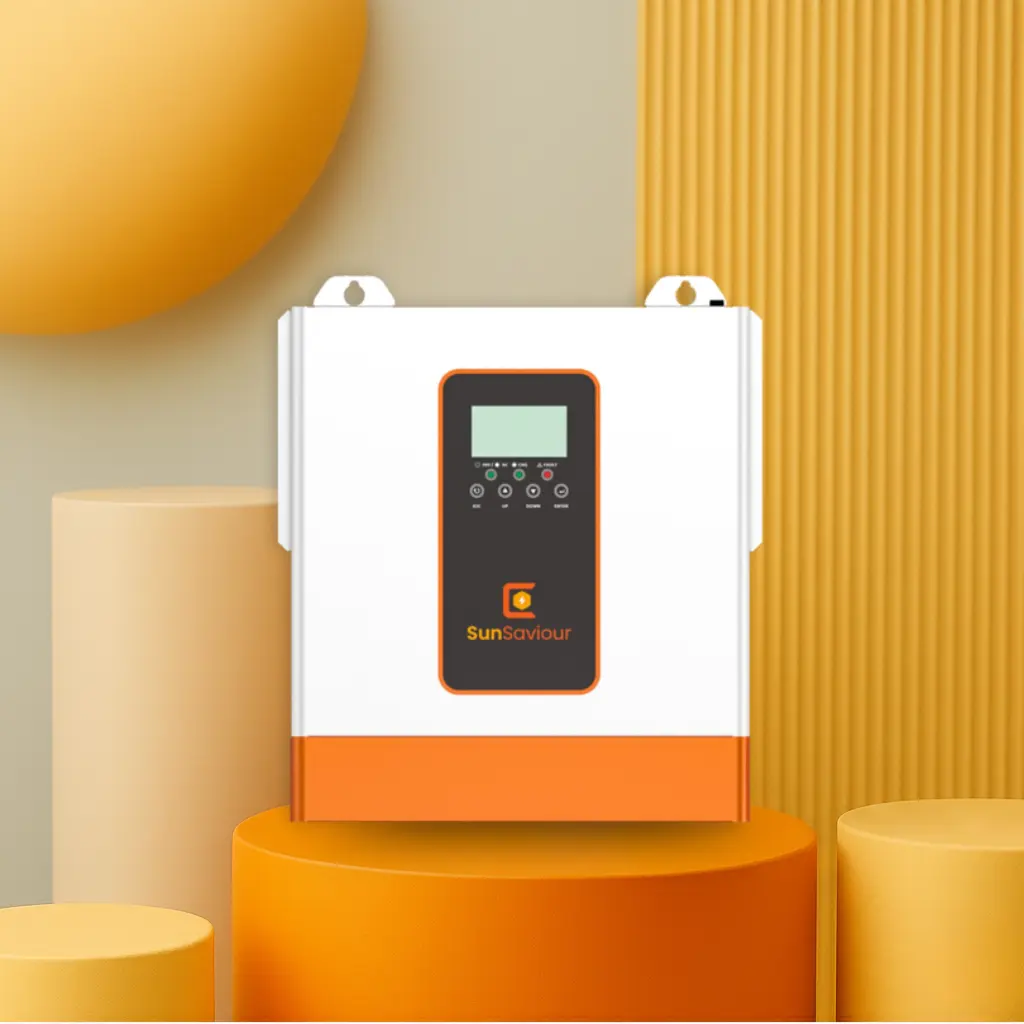

A compact G-Series 3.5KW Hybrid Inverter (IP21), one of the best solar inverters in Pakistan, with 100A MPPT, pure sine wave output, and smart energy modes designed for reliable home and small backup solar systems.
The SunSaviour G-Series 3.5KW Hybrid Inverter is a compact and efficient solar power solution designed for residential backup systems and small-scale solar installations. It combines pure sine wave output with intelligent energy management and a built-in high-capacity MPPT controller, ensuring stable and reliable power delivery for everyday use.
| Specification | Details |
| Rated Power | 3,500W / 3,500VA |
| Battery System | 24V DC |
| PV Input Power | 4,000W |
| Type | Hybrid (Off-grid / Backup) |
| MPPT Controller | Built-in 100A |
| Specification | Details |
| Nominal Output Voltage | 220/230VAC ±5% |
| Rated Output Power | 3,500W |
| Battery Mode Power | 3,000W |
| Surge Power | 7,000VA |
| Waveform | Pure Sine Wave |
| Transfer Time | 10ms (PC), 20ms (home appliances) |
| Specification | Details |
| AC Input Voltage Range | 170–280VAC (PC), 90–280VAC (home appliances) |
| Frequency | 50/60Hz (Auto sensing) |
| PV Max Voltage | 500V DC |
| MPPT Range | 30V – 500V DC |
| Specification | Details |
| Battery Voltage | 24V DC |
| Floating Charge Voltage | 27V DC |
| Overcharge Protection | 32V DC |
| Charging Method | CC/CV |
| Specification | Details |
| Charger Type | MPPT |
| Max PV Array Power | 4,000W |
| Max Solar Charge Current | 100A |
| Max AC Charge Current | 60A |
| Total Charge Current | 100A (AC + PV) |
| Specification | Details |
| PV to Inverter Efficiency | 96% |
| Battery to Inverter Efficiency | 93% |
The SunSaviour G-Series 3.5KW inverter offers a compact, reliable, and cost-effective solar solution for everyday energy needs. With strong MPPT performance, pure sine wave output, and intelligent energy management, it ensures stable power supply and improved battery efficiency for small-scale solar systems.
The Alpha 60KW Three Phase Hybrid Solar Inverter (IP66) is engineered for high-capacity solar installations where stable and reliable energy management is essential. This powerful three phase hybrid inverter efficiently combines solar energy, battery storage, grid electricity, and generator input to ensure continuous and efficient power supply for large-scale energy systems.
Equipped with five independent MPPT trackers, the inverter maximizes solar energy production by optimizing power from multiple solar panel arrays. With a maximum PV input capacity of 78,000W and 18A high PV input current, it supports large solar installations while improving overall system efficiency and energy output.
The inverter also features a modern color touch LCD display that allows easy monitoring and control of system performance. With IP66 protection, dual-layer safety protection, generator energy storage capability, and support for parallel operation of up to 20 inverters, the Alpha 60KW inverter delivers powerful performance, durability, and scalability for advanced solar power systems.
Provides stable and efficient power output for large commercial and industrial applications.
Maximizes solar energy generation by optimizing power from multiple panel arrays.
Supports up to 78,000W solar panel input for large-scale solar installations.
Allows up to 20 inverters to operate in parallel for scalable solar systems.
Includes dedicated diesel generator input with generator energy storage functionality.
Ensures strong protection against dust and water for reliable outdoor installations.
| Specifications | Value |
|---|---|
|
Model |
Alpha 60KW PV 78000W |
|
Phase |
Three Phase High Voltage |
|
Max PV Input Power |
78,000W |
|
MPPT |
5 MPPT (5 × 55A) |
|
Battery Charge / Discharge |
120A |
At SunSaviour, we focus on delivering high-performance solar solutions designed for reliability, efficiency, and long-term durability.
Our solar solutions are designed to maximize energy production and minimize power loss.
Our inverters support parallel operation, making them suitable for both small and large solar installations.
Monitor system performance in real time through advanced monitoring and control features.
Our systems are compatible with various solar panels and advanced lithium battery technologies.
Reduce reliance on the grid and enjoy uninterrupted power during outages.
SunSaviour provides reliable solar products backed by industry knowledge and customer satisfaction.
To maintain optimal performance and ensure long service life, follow these maintenance guidelines.
Power your large solar energy systems with the Alpha 60KW Three Phase Hybrid Solar Inverter, designed for powerful performance and reliable long-term operation.
The inverter supports advanced LiFePO4 lithium batteries, ensuring efficient and reliable energy storage.
Yes, with its IP66 protection rating, it is designed to withstand dust and water, making it suitable for outdoor environments.
The inverter offers up to 98% efficiency, helping maximize the energy generated from your solar panels.
The Alpha 60KW inverter comes with a 5-year warranty for reliable performance and support.
You can contact our support team at +92-317-7003000 or email info@sunsaviour.com for product details and technical assistance.
