Overview

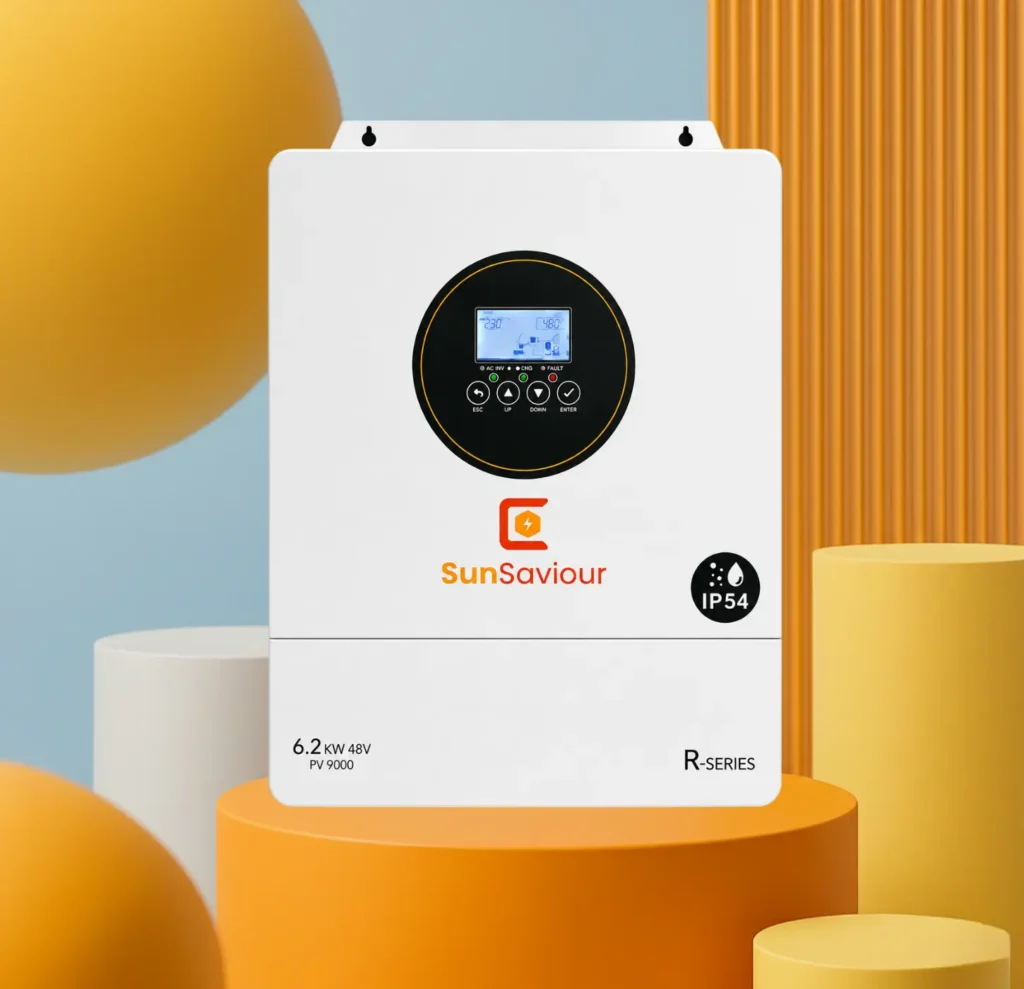

The SunSaviour R-Series 6.2KW Hybrid Inverter is designed to provide flexible and efficient energy management for residential and small-scale solar power systems. With a 6,200W rated capacity and support for up to 9,000W of PV array power, it provides greater solar input capacity for systems with higher energy requirements.

The inverter features a built-in MPPT solar charger with a maximum solar charging current of 120A. It supports a maximum PV open-circuit voltage of 500VDC and an MPPT voltage range of 60VDC to 500VDC. With pure sinewave output and a surge power capacity of 12,400VA, the R-Series 6.2KW is designed to support demanding electrical loads within its specified operating limits.

The R-Series 6.2KW also offers flexible battery and load-management capabilities. It supports LiFePO4 batteries through RS485 communication, lithium battery activation through PV or utility power, and a battery wake-up function. Dual outputs, multiple output priority modes, optional WiFi remote monitoring, batteryless operation, and an IP54 enclosure design make it a versatile choice for modern solar energy systems.

Key Features

• 6.2KW rated hybrid inverter

• Supports up to 9KW PV array power

• Built-in 120A MPPT solar charger

• Maximum 500VDC PV open-circuit voltage

• 60–500VDC MPPT voltage range

• Pure sinewave AC output

• 12,400VA surge power

• Dual output for smart load management

• LiFePO4 battery support via RS485

• Lithium battery activation through PV or utility

• Battery wake-up function

• Capable of operating without a battery

• Multiple output priority modes: UTL, SOL, SBU, SUB

• IP54 enclosure protection

• Detachable dust cover

• Optional WiFi remote monitoring

• Equalization function for battery performance

Available Model

• SunSaviour R-Series 6.2KW PV 9000-48V

Technical Specifications

Performance Overview

AC Input

AC Output

PV Input

Battery & Charging

Efficiency

Smart Energy Management

Physical Specifications

Environmental Conditions

Smart Features

Dual Output for Smart Load Management

The R-Series 6.2KW features dual output functionality, providing greater flexibility for managing different electrical loads within a solar power system.

Multiple Output Priority Modes

The inverter supports UTL, SOL, SBU, and SUB output priority modes, allowing the system to be configured according to different energy-management requirements.

Lithium Battery Activation

The lithium battery activation function allows compatible lithium batteries to be activated through PV or utility power.

LiFePO4 Battery Compatibility

The R-Series 6.2KW supports compatible LiFePO4 batteries through RS485 communication, enabling communication between the inverter and supported battery systems.

Battery Wake-Up Function

The built-in battery wake-up function supports the activation of compatible battery systems when required.

Batteryless Operation

The R-Series 6.2KW is capable of working without a battery, providing flexibility for solar configurations where battery storage is not required.

Optional WiFi Remote Monitoring

WiFi remote monitoring is available as an optional feature, allowing compatible systems to be monitored remotely.

Protection & Reliability

The R-Series 6.2KW includes practical protection and design features to support reliable operation:

• IP54 enclosure protection

• Detachable dust cover for harsh environments

• Overload protection

• Overcharge protection

• Pure sinewave output

• Battery wake-up function

• Equalization function

• RS232 communication

• RS485 communication

Applications

The SunSaviour R-Series 6.2KW Hybrid Inverter is suitable for:

• Residential solar power systems

• Home backup power systems

• Higher-capacity residential installations

• Small-scale commercial solar systems

• Lithium battery solar systems

• LiFePO4 battery systems

• Hybrid solar and utility systems

• Dual-load solar configurations

• Batteryless solar applications

Why Choose SunSaviour R-Series 6.2KW?

The SunSaviour R-Series 6.2KW Hybrid Inverter combines high PV input capacity, efficient MPPT charging, battery management, and utility power integration in a flexible hybrid platform. With 6,200W rated output and up to 9,000W PV input, it is designed for solar systems with greater energy requirements.

Its 120A MPPT charging capability, pure sinewave output, and 12,400VA surge power provide a strong combination of solar charging and output performance within the inverter's specified limits.

Support for LiFePO4 batteries, lithium battery activation, dual outputs, multiple priority modes, batteryless operation, and optional WiFi monitoring gives users greater flexibility when designing and managing their solar energy systems.

Product Care Instructions

• Install the inverter in a suitable and well-ventilated location.

• Keep the inverter and surrounding area clean and free from excessive dust.

• Keep ventilation areas unobstructed.

• Regularly inspect PV, AC, battery, and grounding connections.

• Ensure all electrical connections remain secure.

• Keep the detachable dust cover clean where applicable.

• Protect the inverter from excessive moisture.

• Operate the inverter within its specified temperature and humidity range.

• Have electrical inspection and maintenance performed by a qualified professional when required.

Upgrade Your Energy Independence

Upgrade your solar energy system with the SunSaviour R-Series 6.2KW Hybrid Inverter. With 9,000W maximum PV input, 120A MPPT charging, pure sinewave output, LiFePO4 battery compatibility, dual outputs, and IP54 protection, it provides a flexible solution for modern residential and small-scale solar applications.

Frequently Asked Questions

What is the rated power of the SunSaviour R-Series 6.2KW?

The R-Series 6.2KW has a rated capacity of 6,200VA / 6,200W.

How much solar PV can the R-Series 6.2KW support?

The inverter supports up to 9,000W maximum PV array power.

What is the maximum PV voltage?

The maximum PV open-circuit voltage is 500VDC, with an MPPT voltage range of 60VDC to 500VDC.

What battery voltage does the R-Series 6.2KW use?

The R-Series 6.2KW uses a 48VDC battery system.

Does the R-Series 6.2KW support lithium batteries?

Yes. It supports lithium battery activation through PV or utility power and compatible LiFePO4 batteries through RS485 communication.

What is the maximum solar charging current?

The maximum solar charging current is 120A.

What is the maximum AC charging current?

The maximum AC charging current is 120A.

Can the R-Series 6.2KW work without a battery?

Yes. The R-Series 6.2KW is capable of operating without a battery, depending on the system configuration and operating conditions.

What type of output waveform does it provide?

The R-Series 6.2KW provides a pure sinewave output.

What is the surge power of the 6.2KW model?

The inverter has a 12,400VA surge power rating.

What is the efficiency of the R-Series 6.2KW?

The peak PV-to-inverter efficiency is 96%, while peak battery-to-inverter efficiency is 93%.

Does the inverter support WiFi monitoring?

Yes. WiFi remote monitoring is available as an optional feature.

What is the protection rating?

The R-Series 6.2KW has an IP54 enclosure protection rating.

What is the operating temperature range?

The specified operating temperature range is -10°C to 55°C.
